  #1
  01-22-2017, 07:12 PM
cp32's Avatar
Gramma of CPS

Location: ohio, USA.
Stats: 4,271 posts since Jun 2005
Status: Verified Member
Thanks: 22 times in 21 posts
Send a message via Yahoo to cp32
Can someone post screen shots how the blue blazes you select the source input file- where to what to set where. I AM ABOUT READY TO SCREAM!! the other mkv tools were ok to use as the Bue Man Suggested, Hybrid is another story...
Reply With Quote
  #2
  01-23-2017, 05:35 AM
lordsmurf's Avatar
Site Staff – Forum Moderator

Arcade Wins: Asteroids Champion Minigolf Champion People on Fire Champion
Location: The Smurfs Village
Stats: 9,731 posts since May 2005
Status: Moderator
Thanks: 126 times in 112 posts
I took several screenshots. This is a quickie mini-guide for you.

You had several requirements:
a. Source is x264 (or x265, you were not sure), in a Matroska (MKV) container.
b. Retain original audio, do not re-encode
c. Source assumed to already be deinterlaced
d. Size is consideration.

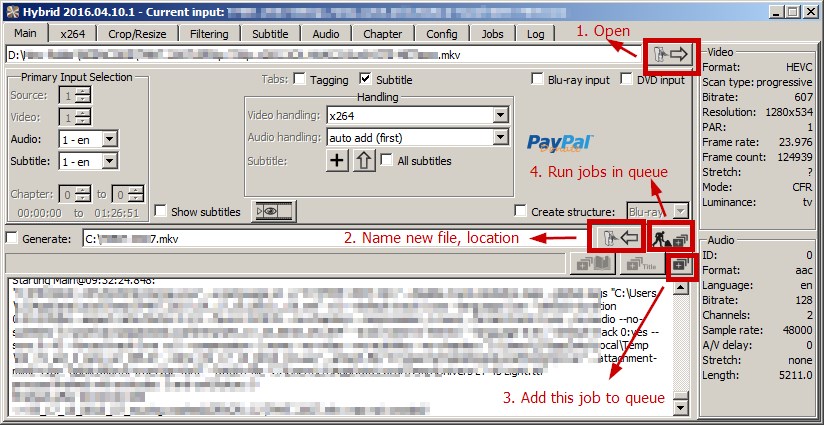

1. Open, save, run

You can save as an MP4, MKV, etc .... name the new file as the desired format, and Hybrid will auto mux as needed. Since Hybrid is queue-based, even for a single encode, this means you can batch many jobs.

Name:  hybrid-miniguide1.jpg
Views: 103
Size:  117.2 KB

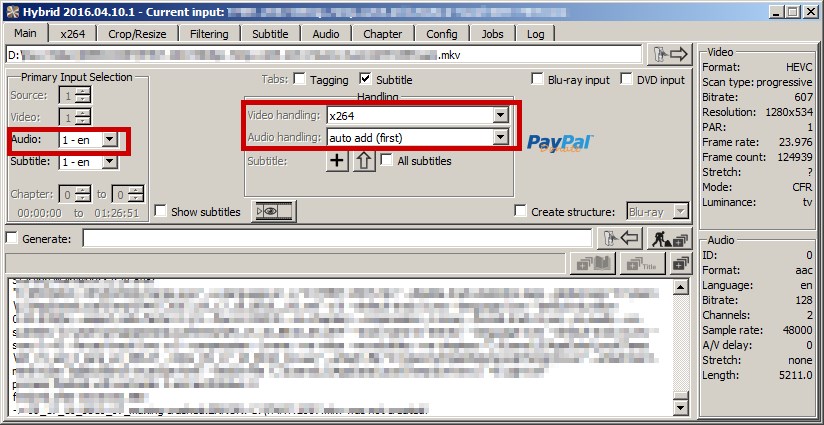

2. Audio source, video target parameters

You wanted audio, so include it. Auto-add first audio stream to the new file. I assume 1 stream, or a main stream with useless streams afterwards (foreign language, commentary). Removing needless streams reduces file size. This will also save you later muxing in MkvToolNix. Video handling is your target encode; x264 in your case (not next-gen HEVC aka x265).

Name:  hybrid-miniguide2.jpg
Views: 84
Size:  106.0 KB

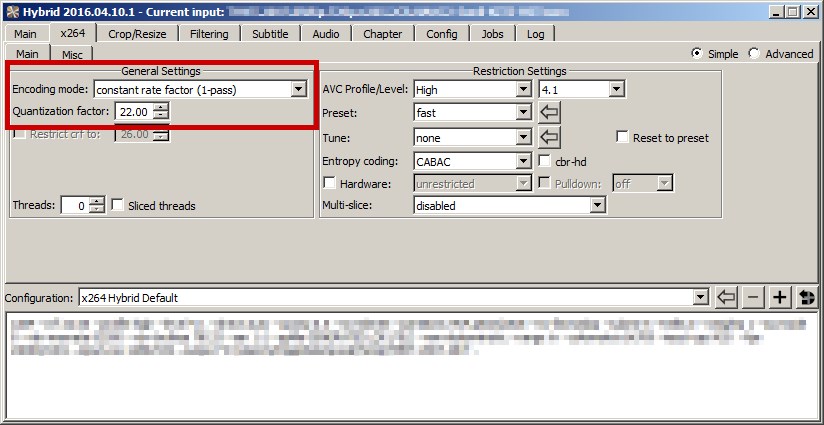

3. x264 encoding

What you knew about bitrates in MPEG doesn't really translate to next-gen encoding -- less so when transcoding (converting). For this sort of task, use CRF (constant rate factor), with a quantize rate of anywhere from 16 to 25. And 16 is low compression, while 25 is high compression. 16-19 is for noisy or busy source, 20-22 is for average source, and 23-25 is for really clean source or cel animation. This gets more complicated, but for a newbie, it's a good intro. For you, start with 22. See how it looks.

Name:  hybrid-miniguide3.jpg
Views: 108
Size:  77.4 KB

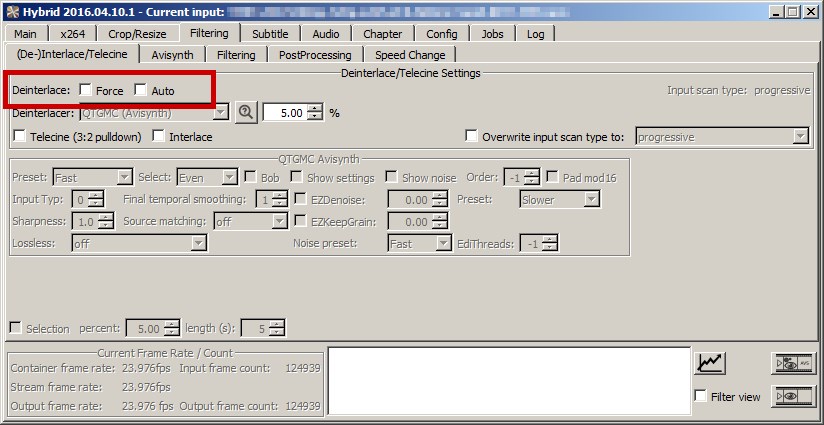

4. Deinterlace

Hybrid defaults to turning on deinterlacing. I assume your source is already deinterlaced. Turn it off. (You should know what interlace is, you've been around me for more than a decade now!)

Name:  hybrid-miniguide4.jpg
Views: 92
Size:  84.0 KB



5. Audio re-encoding

By default, re-encoding is turned on. Turn it off, since you want to keep your original audio stream. However, I often re-encode to AAC at 200-300 bitrates (192, 224, 256), as it can sound just as good. My TV is stereo, not a wall rumbler attached to every wall in the room. I'm a TV fan, not a movie fan, and almost no TV show has surround sound.

Name:  hybrid-miniguide5.jpg
Views: 99
Size:  74.8 KB

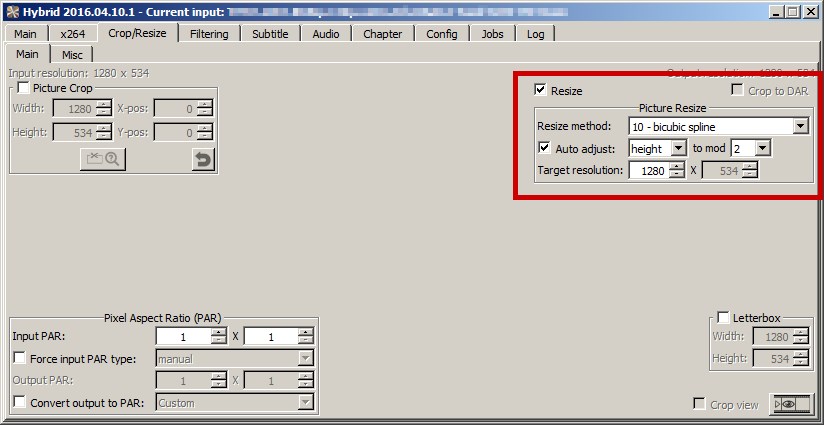

6. Optional: Resize

The nature of x/H.264 encoding is that softeners are applied, rather than artifacts, when bitrate gets low. Most 1080p encodes are therefore about 720p in quality, when not fed huge bitrates on the huge Blu-ray discs. The lower you drop resolution, the more file sizes shrinks. I never bother to encode non-disc content above 720p (or 1280 max width). I never go lower than 640x360, preferring everything in the 720x404/406 to 1280x720ish range. On a large 55" HDTV, sitting 10 feet away, it looks great. Size your encodes sensibly.

To maintain aspect ratio, auto-adjust the size (assuming source was correct aspect). In this example, the source was slimmer than 16x9, and the black bars in a 16x9 matte were removed for encoding on the source. So the actual size is 1280 (720p) by 534 (instead of 720).

Name:  hybrid-miniguide6.jpg
Views: 86
Size:  62.3 KB



And there you go. Enjoy the mini guide.


__________________
The LS Collection:. My Cartoon and TV Show List | My Want List | My Future Projects
Reply With Quote
  #3
  01-23-2017, 07:13 PM
cp32's Avatar
Gramma of CPS

Location: ohio, USA.
Stats: 4,271 posts since Jun 2005
Status: Verified Member
Thanks: 22 times in 21 posts
Send a message via Yahoo to cp32
Ok theres the problem. Screen shot 1 no open, audio or subtitle tab
Reply With Quote
  #4
  01-23-2017, 08:18 PM
lordsmurf's Avatar
Site Staff – Forum Moderator

Arcade Wins: Asteroids Champion Minigolf Champion People on Fire Champion
Location: The Smurfs Village
Stats: 9,731 posts since May 2005
Status: Moderator
Thanks: 126 times in 112 posts
Use the same version, not the newest one. Maybe something changed. But I doubt any changes were so profound as to be impossible to locate. I cannot look into it right now.

You should have posted a screenshot if you see something different, don't make me guess.
__________________
The LS Collection:. My Cartoon and TV Show List | My Want List | My Future Projects
Reply With Quote
  #5
  01-23-2017, 08:43 PM
cp32's Avatar
Gramma of CPS

Location: ohio, USA.
Stats: 4,271 posts since Jun 2005
Status: Verified Member
Thanks: 22 times in 21 posts
Send a message via Yahoo to cp32
it is the newer vers from VH link. 1.7.1 And when I send you screen shots .You say dont send you screen shots lol lol I cant win
